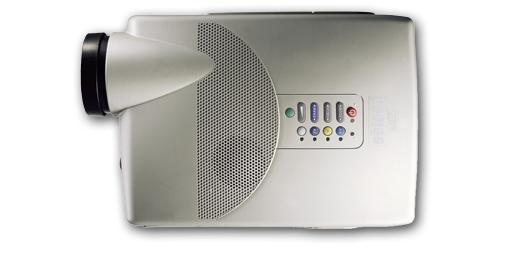

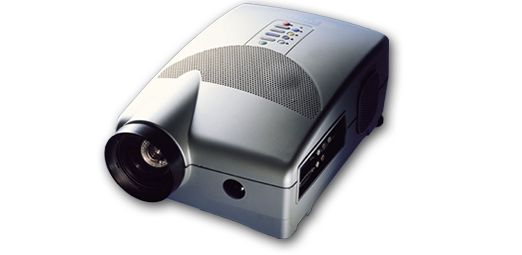

SDV100 Premiere

Projection

DLP™ Type:: 1 x DMD chip (800x600 pixels) Lenses:: Motorised zoom lens 1.2:1.7 Zoom Factor:: 1.5x Focal range:: 1.75 m – 5 m (5.74 ft – 16.4 ft) Keystone:: 17 degrees Lamp:: 150W UHP (2000 hrs. normal life time) Picture size:: 60"-300" (diagonal) Throw distance:: 1,1-12 m (3,6ft - 40ft) Resolution:: up to XGA (1024x768) (compressed) Aspect ratio:: 4/3, 16/9

Electronics

Horiz. scan freq.:: 15 – 60 kHz Vert. Scan freq.:: 48 – 85 Hz Contrast:: >500:1 (full On/Off) Colour system:: PAL BDGIHM, SECAM, NTSC M Audio:: (built-in) 10 W loudspeaker

Inputs/Outputs

Composite Video:: RCA S-Video:: 4 pin Mini DIN Data:: 15 pin Mini D-Sub Audio:: 2 x RCA stereo

General

Control:: Serial (RS232) Power input:: 100-250V , 50-60 Hz Power consumpt.:: 210 W max Size (WxHxD):: 225 x 130 x 335 mm (8,9” x 5,1”x13,2”) Weight:: 4,5 Kg (9,9 lbs) Remote Control:: with two customisable buttons

Accessories

Optional::Soft bag ::TV tuner (for Europe ONLY)
